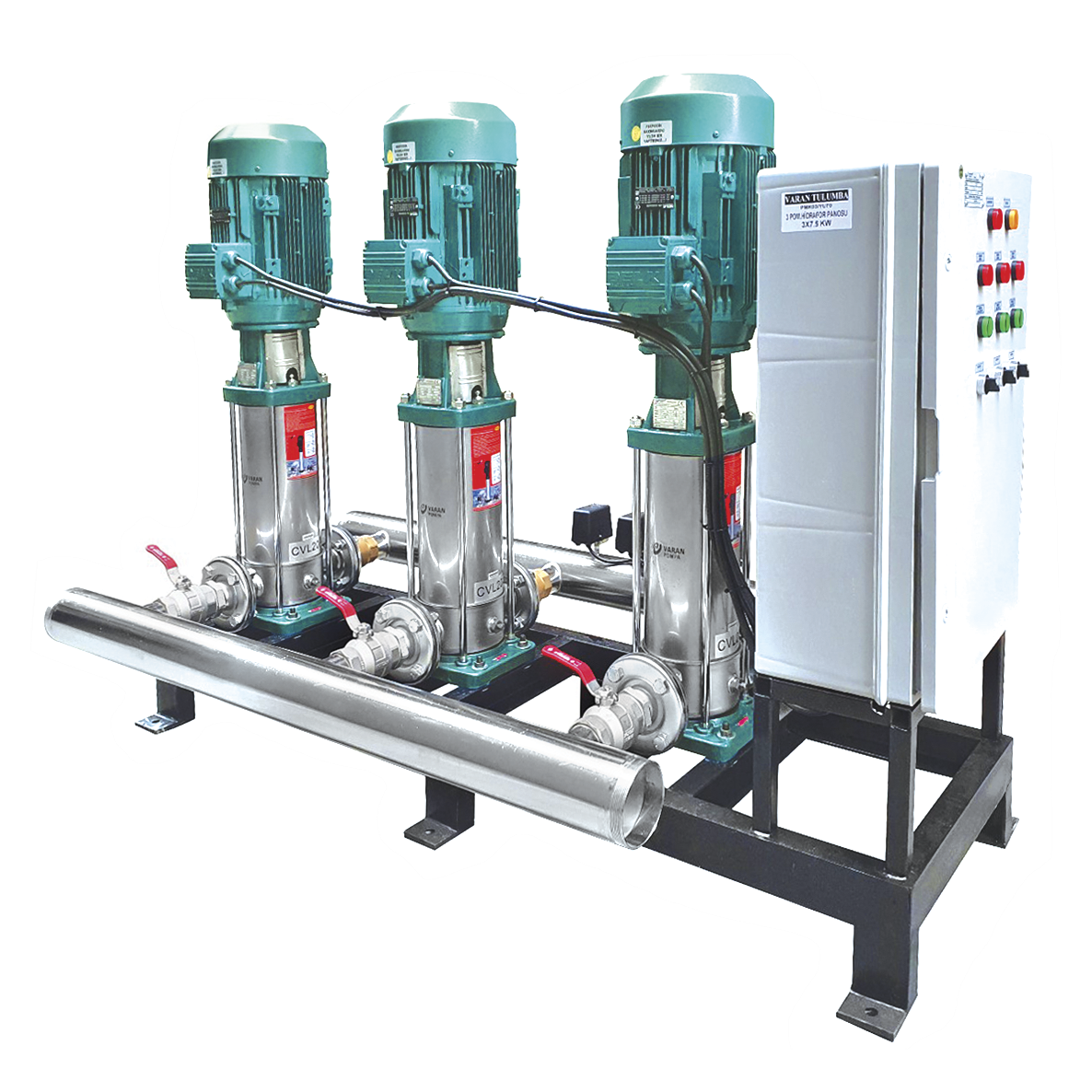

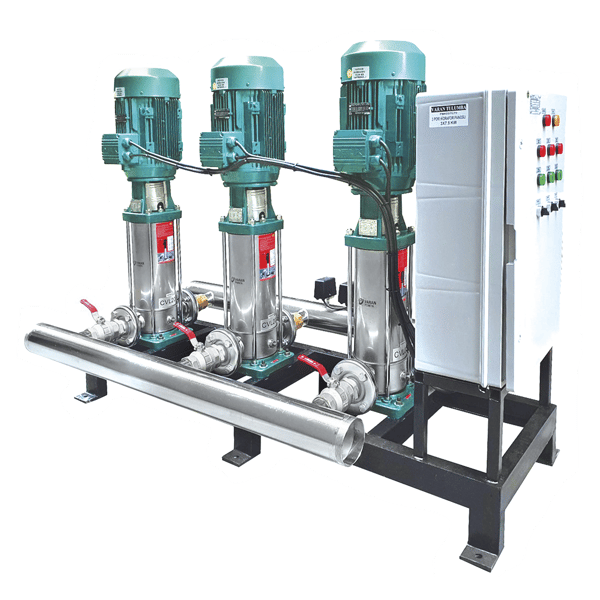

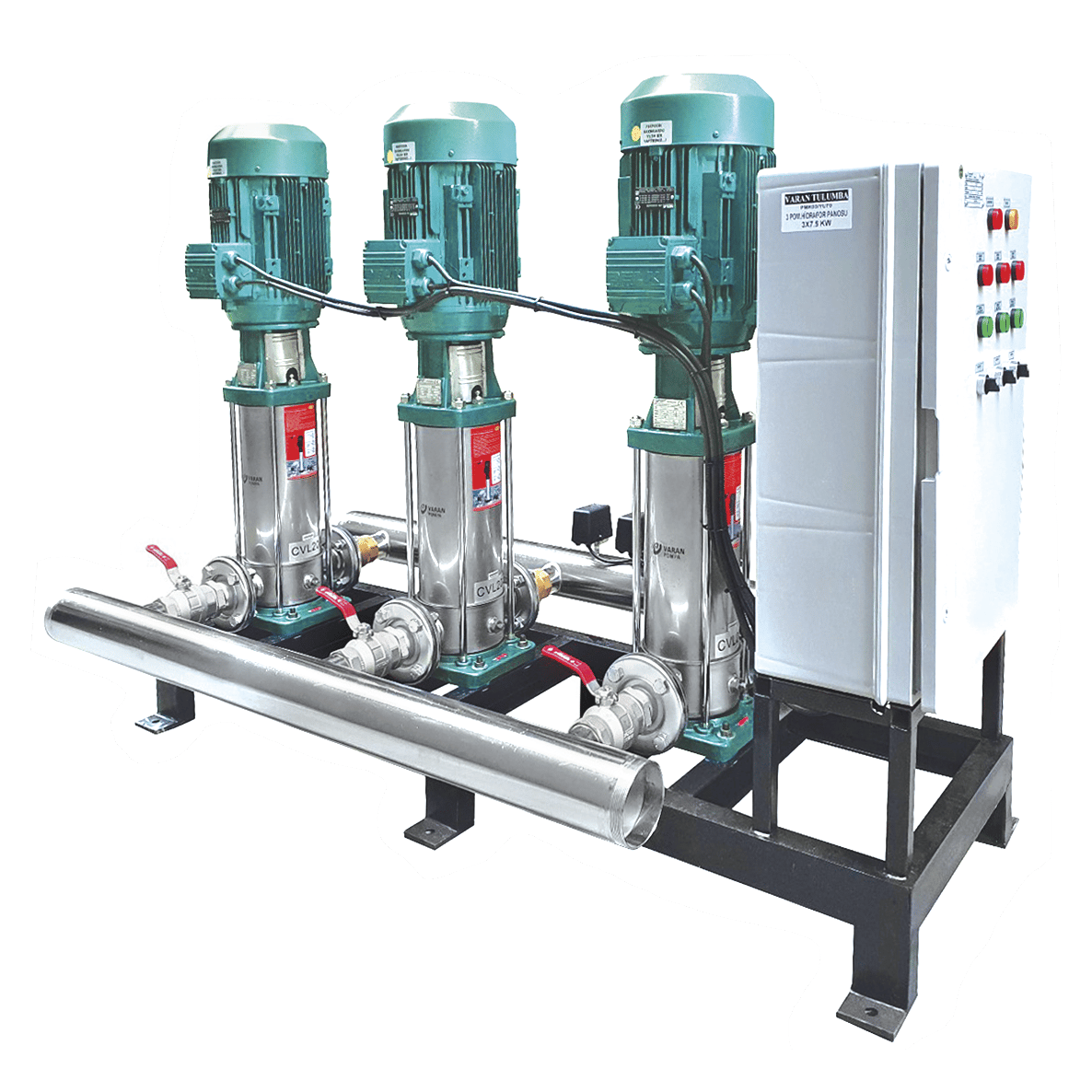

Varan CVF90-3x3 HID Komple AISI 304 Paslanmaz / Üç Pompalı Endüstriyel Hidrofor (30 HP / 22 kW) 83 mSS / 330 m3/h (CVF90-3x3 HID )

Marka : VARAN
Fiyat : ₺982.284,44(KDV Dahil)
1639
2264
GÜÇ
30 HP / 22 kW
VOLT
380 V
ÇIKIŞ
6" - DN 150
GİRİŞ
6" - DN 150
Qmax
251-400 m3/h
Hmax
76-100 mSS
Qmin
126-175 m3/h
Hmin
41-50 mSS
KAPLİN
Kapalı Kaplin
GÖVDE
Paslanmaz AISI 304
ÇARK
Paslanmaz AISI 304
ÇARK TİPİ
Kapalı
MİL
Paslanmaz AISI 304
KADEME
Çok
DİFÜZÖR
AISI 304
SALMASTRA
Karbon/Silisyum/Viton
MAX SICAKLIK
90 °C
MAX EMİŞ
6 mt
MAX PARTİKÜL
0-5 mm
POMPA SAYISI
x3
KUTUP / DEVİR
2 P - 3000 d/d
FREKANS
50 Hz
