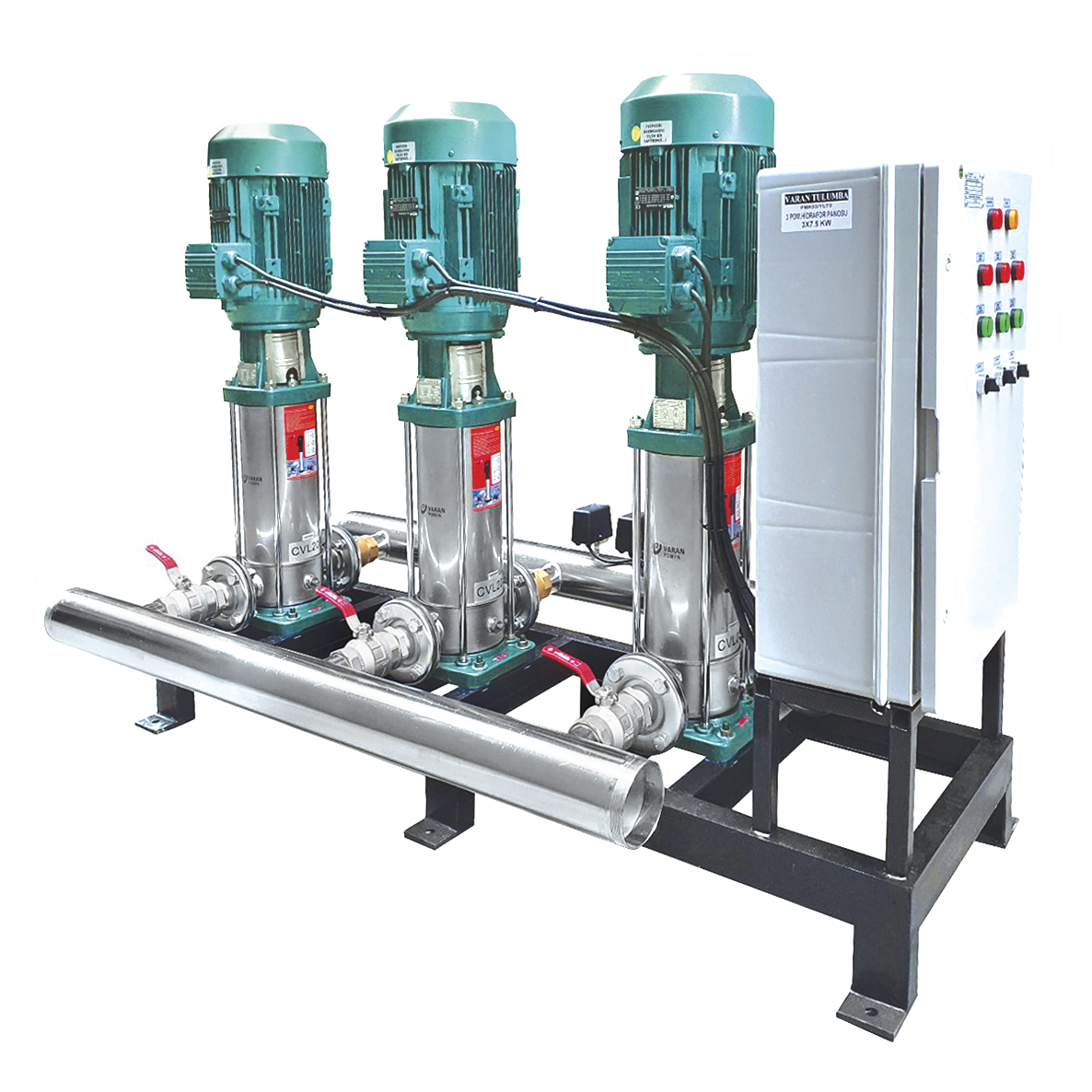

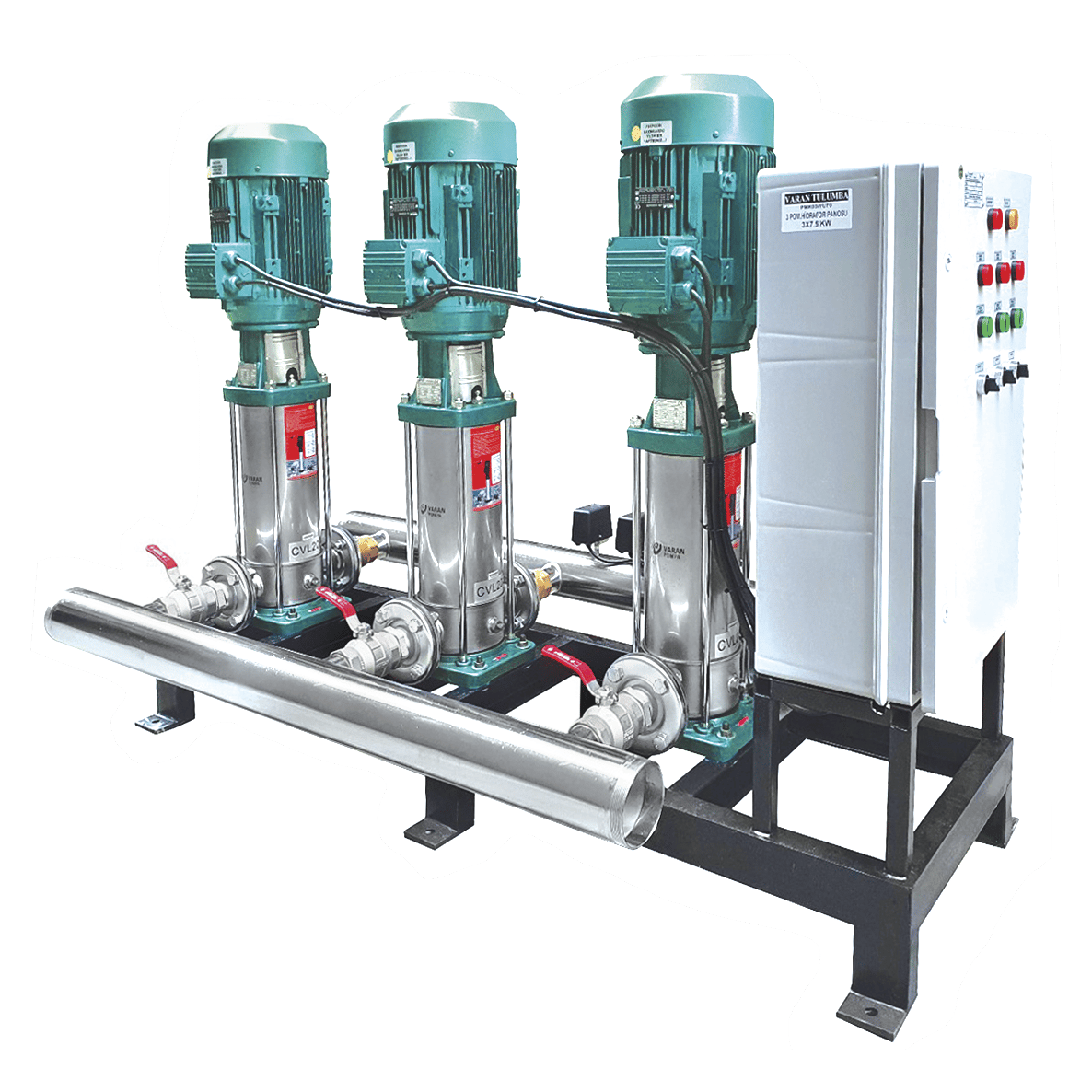

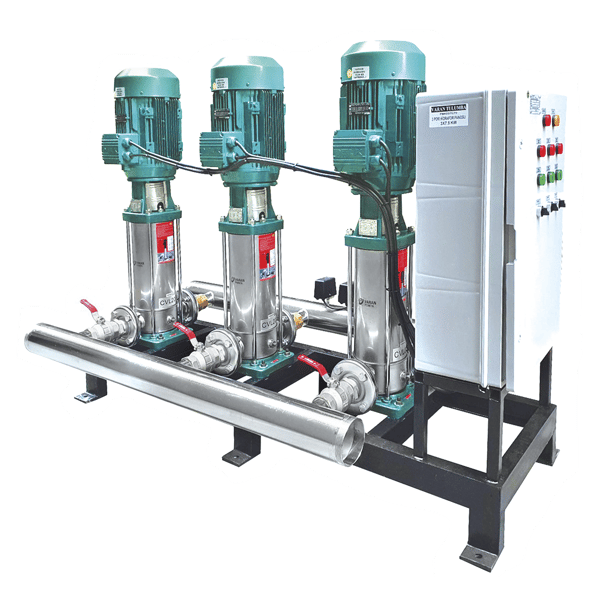

Varan CVF90-2x3 HID Komple AISI 304 Paslanmaz / Üç Pompalı Endüstriyel Hidrofor (20 HP / 15 kW) 56 mSS / 330 m3/h (CVF90-2x3 HID )

Marka : VARAN
Fiyat : ₺856.181,60(KDV Dahil)
1637
2262
GÜÇ
20 HP / 15 kW
VOLT
380 V
ÇIKIŞ
6" - DN 150
GİRİŞ
6" - DN 150
Qmax
251-400 m3/h
Hmax
51-75 mSS
Qmin
126-175 m3/h
Hmin
21-30 mSS
KAPLİN
Kapalı Kaplin
GÖVDE
Paslanmaz AISI 304
ÇARK
Paslanmaz AISI 304
ÇARK TİPİ
Kapalı
MİL
Paslanmaz AISI 304
KADEME
Çok
DİFÜZÖR
AISI 304
SALMASTRA
Karbon/Silisyum/Viton
MAX SICAKLIK
90 °C
MAX EMİŞ
6 mt
MAX PARTİKÜL
0-5 mm
POMPA SAYISI
x3
KUTUP / DEVİR
2 P - 3000 d/d
FREKANS
50 Hz
